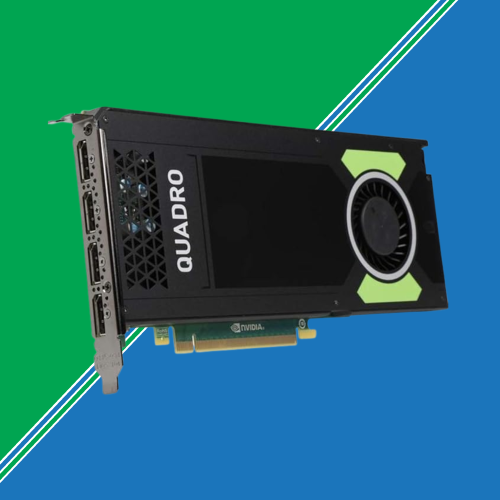

Are you looking for an efficient workstation GPU for CAD design, rendering, and visualization workloads? Upgrade your system with the NVIDIA Quadro M40008GB graphics card. The Quadro M4000, built on the Maxwell architecture, delivers stable graphics acceleration for engineering, simulations, and 3D visualizations. It features 8GB of 256-bit GDDR5 memory and 1,664 CUDA cores, and supports a PCIe 3.0 x16 interface and DirectX 12, OpenGL 4.5, and Shader Model 5.0 features for graphics acceleration. It also supports up to four DisplayPort outputs through NVIDIA Mosaic technology, enabling multi-monitor setups. Additionally, enterprise-ready, ISV-certified drivers and an optimized thermal design improve the efficiency of CAD workflows, architectural visualizations, 3D animation and rendering, and engineering simulation applications. The NVIDIA Quadro M4000 is compatible with current professional workstations, CAD software, and PCIe-compliant hardware. ServerBasket offers affordable Quadro M4000 graphics card solutions, along with technical support, fast delivery, and a one-year warranty.

Additional information

Form Factor	4.4" H × 9.5" L, Single Slot, Full Height
Display Connectors	4x DisplayPort 1.2
Max Display Resolution	4096 × 2160 @ 60Hz
Max VGA Resolution	2048 × 1536 @ 85Hz
Compute APIs	CUDA, DirectCompute
Workloads	CAD, 3D Design, Rendering, Visualization
