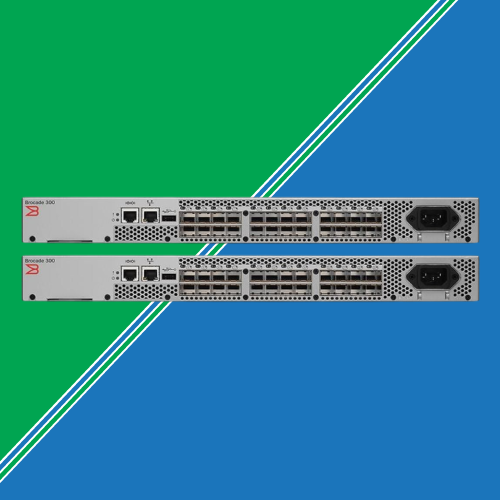

Dell EMC Connectrix DS-300B Switch
Roll over image to zoom in
AED 599.00 AED 699.00 (-14%)
- Up to 24 Fibre Channel ports (scalable by license)
- Support 1G / 2G / 4G / 8G FC speeds
- ~408Gbps switching bandwidth full duplex
- 1U rackmount compact SAN switch
- ISL trunking for multi-switch fabric
- Built-in management port & console
- Redundant cooling fans for reliability
Technical specification
| Attribute | Value / Note |
|---|---|
| Model | Connectrix DS-300B |
| Max Ports | Up to 24 universal FC ports |
| Port Speed Support | Auto-sensing 1/2/4/8 Gb/s |
| Chassis Form Factor | 1U Rack-mountable / desktop capable |
| Switching Capacity | ~408 Gb/s full duplex (24×8.5×2) |
| ISL Trunking | Up to 8 ports/ISL, up to ~68 Gb/s |
| Management Ports | RJ-45 10/100Mgmt, USB, RS-232 console |
| Power/Redundancy | Fixed PSU (varies), redundant fan design |
| Standards Compliance | FC-PH, FC-PH-2, FC-PH-3, FC-GS-2, etc. |
| Typical Applications | Entry / Edge SAN fabric |
